What is Reliq
Reliq is a hybrid control surface. It is designed to be the central hub of a studio by combining an analog matrix, an analog mixer, a complex sequencer, and a DAW controller. Reliq allows to create complex sequences, modulate signals, and route audio and control voltage signals from a single musical interface.
Main Reliq Technical Specifications
Specification | Details |
|---|---|
Power Supply | 15 V/DC 4A 60 W |
MIDI Outputs | 3 TRS type-A MIDI outputs |
MIDI Inputs | 1 TRS type-A/B MIDI input |
USB Connections | USB MIDI, USB HOST |
Buttons | 303, Pads |
Encoders | 16 Clickable Infinite Encoders, 1 Joystick Infinite Encoder, 1 Illuminated Clickable Encoder |
Display Resolution | 1920x515 px |
Display Brightness | 400 nits |
LEDs Brightness | R: 230 mcd, G: 470 mcd, B: 80 mcd |
Dimensions | 400 mm x 400 mm x 56.5 mm |
Weight | 2.8 kg |
Breakout Module Technical Specifications
Specification | Details |
|---|---|
Matrix Inputs/Outputs | 16 Mono 3.5mm TS connector Inputs, 16 Mono 3.5mm TS connector Outputs |
Matrix Voltage Range | +/- 10V |
Matrix Input Impedance | 100kΩ |
Matrix Output Impedance | 51Ω |
CV Outputs | 32, +/- 10V |
Pitch Mapping | 1V/Oct |
CV Output Impedance | 100Ω |
Gate Outputs | 16, +10V |
Gate Output Impedance | 1kΩ |
Clock Out | +10V |
Reset Out | +10V |
Reliq USB-C Connection | Reliq Protocol |
Cable type | USB-C Gen 3.1 |
Cable length | Tested up to 2 meters |
Module Dimensions | 32 HP (162.56 mm x 128.50 mm) |
Module Depth | 30.5 mm (skiff friendly) |
Box Dimensions | 170 mm x 136 mm x 38 mm |
Weight | 0.8 kg |

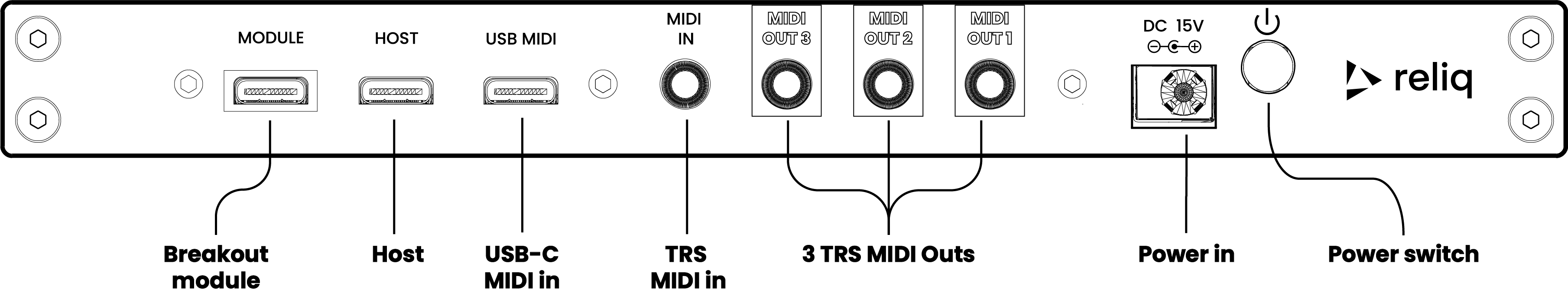

Reliq Connectivity Diagram

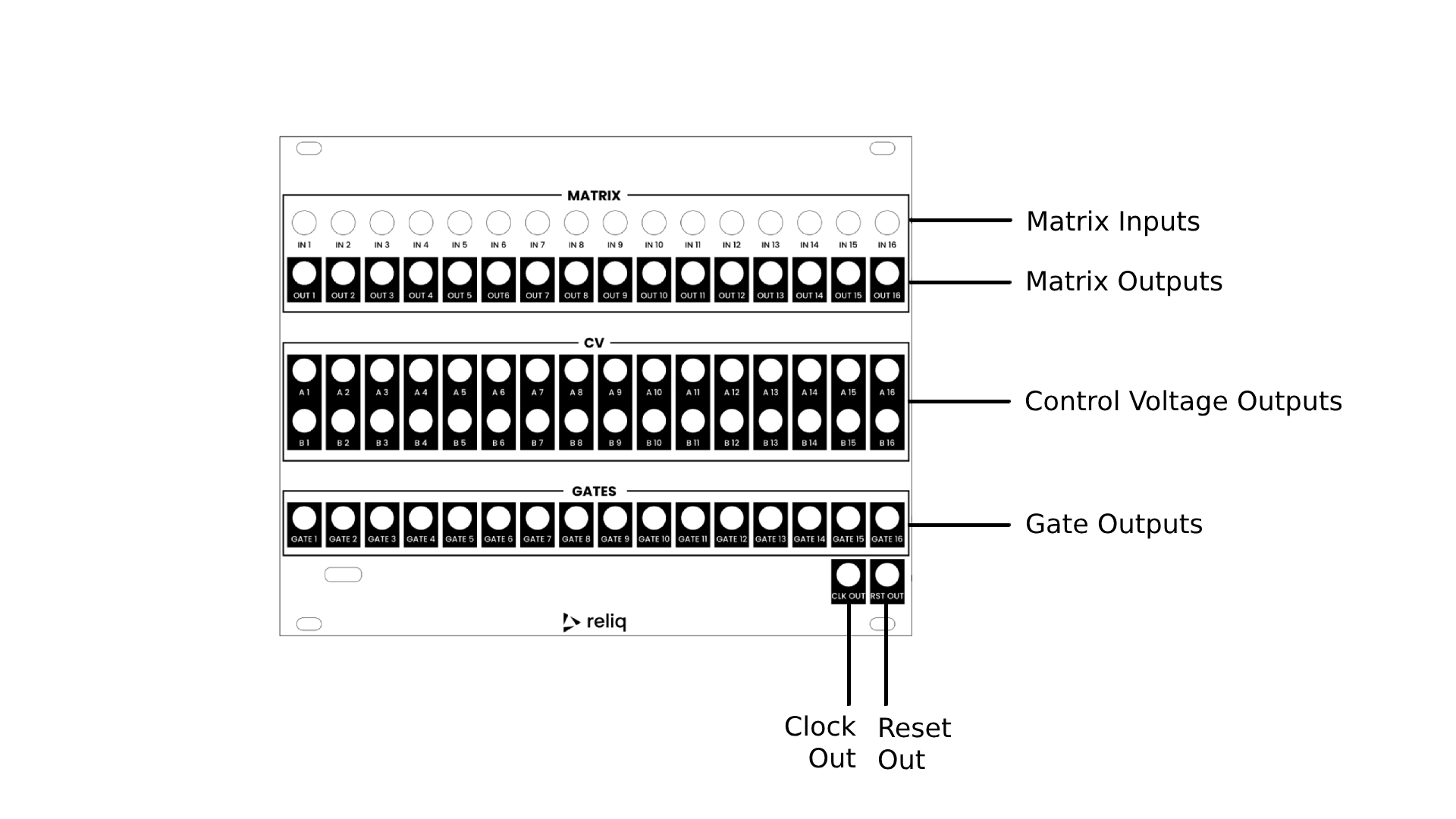

Breakout Connectivity Diagram
